[IBP ] Node / Heroku buildpack backend for Mailgun service

• This is express backend application that is based on earlier backend which implemented all CRUD API endpoints using the provided data.
• Added functionality: using Mailgun to send/track emails.
• sample heroku backend is on http://glacial-cove-96986.herokuapp.com
• added readme entities, which are neccessary for running this app in this submission are emphasized

Files added

• IBP.email.postman_collection.json : latest postman collection
• IBP.email.postman_environment.json : latest postman environment
• src/modules/email/.. : email module
• test_files/sql/email.sql : sql file to setup email module
• .eslintrc : eslintrc, change rules if you think some are not proper
• .gitignore : basic gitignore file for node_modules

Dependencies

• runs on node.js v5.11.1 / node.js v6
• postgres 9.5
• express 4+
• [heroku][https://www.heroku.com]
• [eslint][http://eslint.org/]
• postman chrome extension for verification https://www.getpostman.com

Important: Mailgun configuration

• sign up for mailgun https://mailgun.com/signup
• provide email, name, password. payment info not needed yet
• note: unless you add domain in mailgun configuration, you can only send to email address provided above, so for testing you should register to mailgun and use your email address to receive emails
• after registration goto https://mailgun.com/app/account/settings
• copy Private API Key to config/default.json -> mailConfig.mailgunKey (or environment variable)
• key is in format key-........

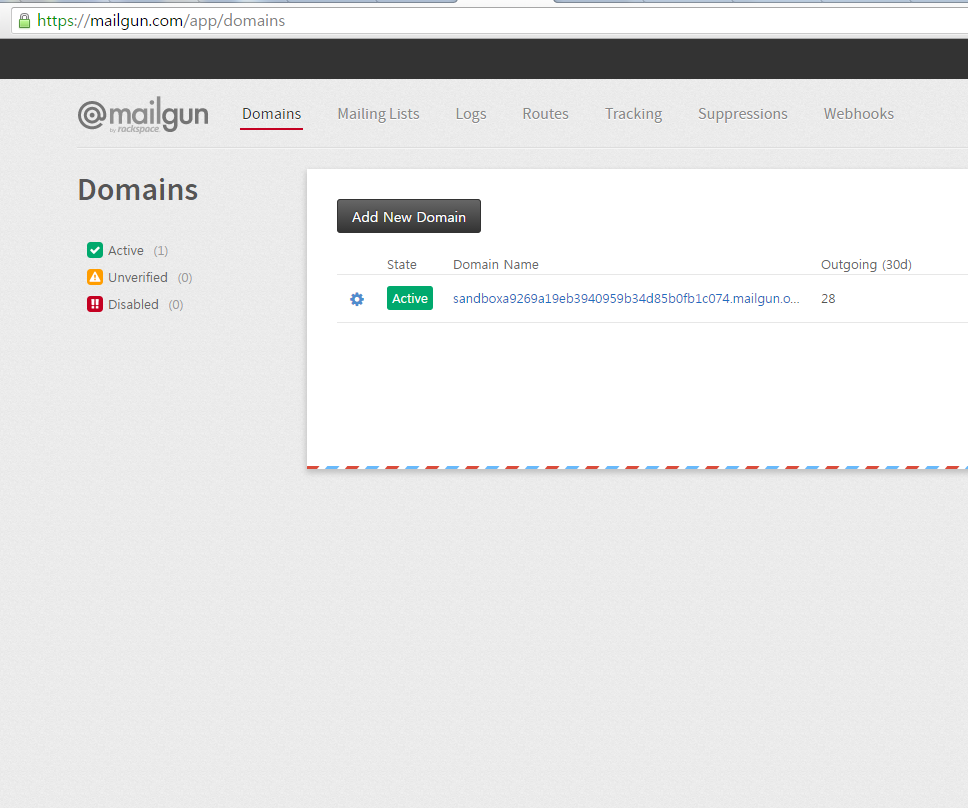

• goto https://mailgun.com/app/domains
• copy Domain Name to config/default.json -> mailConfig.mailgunDomain (or environment variable)

Configuration

• Edit configuration in config/default.json and
• custom environment variables names in config/custom-environment-variables.json,
• for example it will read DATABASE_URL as url of database from heroku.

Following variables can be configured:

• authSecret the secret for auth
• port the port to listen
• logLevel the log level debug or info
• version the version of api
• dbConfig the configurations for database and contains url, pool size and pool idle timeout.

Heroku deployment

• You will need to install Heroku Toolbelt for this step if you don't already have it installed.

• In the main project folder, run the following commands:

    heroku login
    git init
    git add .
    git commit -m "init"
    heroku create
    heroku addons:create heroku-postgresql:hobby-dev
    git push heroku master
    heroku logs -t
    heroku open


Local Deployment

• for development it is very handy to have buildpack deployed to your local machine.
• Please make sure to configure url of database rightly in config/default.json or use environment variable DATABASE_URL.
  • current default db_url: postgres://test:test@localhost:5432/test
  • so, you should have postgres running on port 5432 of your localhost
  • with database name test
  • which is given access to user test
  • who can log in with password test
• Install dependencies npm i
• run lint check npm run lint
• Start app npm start

Database restore (existing functionality)

• Please follow this article restore

• or restore on heroku to restore dump file in test_files\games.psql.

• I actually create sample module to reset database easily you can just configure databae url rightly, start application and run reset request in demo folder in postman.

• manually restore required database dump by above guides, or launch postman(after deployed to heroku), goto demo -> reset, click send

Email Database Setup

• all email data will go to table emails

• after you did database restore above,

• execute test_files/sql/email.sql on heroku postgres.

        $ cat test_files/sql/email.sql | heroku pg:psql
        ---> Connecting to DATABASE_URL
        SET
        SET
        SET
        SET
        SET
        SET
        SET
        SET
        SET
        SET
        DROP TABLE
        CREATE TABLE
        GRANT
        GRANT


Setup postman

• Load postman collection:

  • endpoints: IBP.email.postman_collection.json
  • environment: IBP.email.postman_environment.json

• postman environment variables:

  • URL the base API url for local testing use http://localhost:3000 or heroku app url
  • TOKEN sample super role token
  • ADMIN_TOKEN sample admin role token
  • USER_TOKEN sample user role token
  • NOROLES_TOKEN sample user without roles token
  • INVALID_TOKEN sample invalid token
  • mailId id assigned to email, after you sucessfully sent/queued an email you'll be assigned one
  • address email address to send/receive, because mailgun doesn't support mailing to outside or mailing to many receivers unless you own a domain, this address will be used as sender/receiver. so use your address to verify a mail is sent to you. use the mail address you used in registering to mailgun
  • b64image topcoder logo encoded in base64 to test image attachment functionality

Email Postman verification

• added mail folder to postman collection
•
• send email
•
• get email
•
• get delivery status
•
• delete email (this deletes mail from heroku backend, does not cancel actual mail)

Email API

• check api/emailApi.yaml for swagger definition.

• POST /emails endpoint to send an email

• to set custom headers:

    "headers": [
      "x-test-header:1234" <== {{headerName}}:{{headerValue}}
    ]


• to schedule a mail to be sent in the future, set delivery_time in ISO 8601 date format.

• for attachments, content_bytes should be string in base64 of original binary data.

    "attachments": [{
        "file_name": "blank.txt",
        "file_type": "text",
        "content_bytes": "IAo="
    }]


• after a successful POST to /emails endpoint, an email ID will be assigned, sample response:

    200 Ok
    {
      "result": {
        "success": true,
        "code": 200
      },
      "id": 3
    }


• use above id to track delivery status, by /emails/{id}/deliveryStatus endpoint.

On Mailgun Api

• If you set multiple mail receivers, their api doesn't support tracking properly
• Mailgun explicitly states (https://documentation.mailgun.com/api-events.html) that their event api isn't updated right on time, and users are required to throw away the result reported from the mailgun api and repeat the request on their discretion. so, for tracking, it's possible that in some cases 1) mail is sent (it is in my inbox) 2) but their event api isn't updated.

Additional functionality

• GET /emails/stats endpoint for tracking Mailgun usage for past 1 month.

Module system for future developers

• structure modules in each folder, src/modules/<module name>
• put controllers for each module in src/modules/<module name>/controllers
• put services for each module in src/modules/<module name>/services
• a module should have routes.js on top, src/modules/<module name>/routes.js. declare routes to controllers in this file.
• use relative imports, e.g ) const service = require('../services/fooService'); to load services from controllers within a module, or import between services within a module.
• currently existing modules: crud, sample, mail
• how the modules are loaded: src/app-routes.js will glob src/modules/*/routes.js and load them.
• remove a module from application by deleting a module directory.

Authentication & Authorization

• It will use passport and it could support social feature to login as twitter, facebook easily.
• It will use src/app-passport.js to load passport strategies in src/passports, you can define auth:{name of passport strategy} in routes.js of module.
• You can also define access:[role1,role2], the user role name is from src/constants.js.
• It will check Authentication & Authorization in src/app-routes.js to secure your APIs.
