+## Automatical parameters optimization
+As we have developed five different metrics, the reconstruction result could be evaluated quantitatively. So we write a script to search for the best parameters automatically.
+Simulated Annealing is used to find the global optimal result, and the loss value in each iteration is calculated by averaging the precision and recall of ssd metric.
+

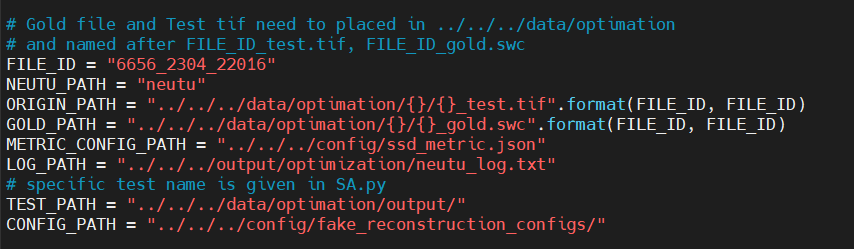

+### 1. Locate the optimization script, data and neutu
+![image](https://user-images.githubusercontent.com/32678771/119219334-a150c880-bb17-11eb-8622-9a91873abe10.png)
+#### 1.1 Tools and configs of tools:
+##### NEUTU_PATH:
+The reconstruction process relies on neutu(https://github.com/janelia-flyem/NeuTu), the path executable neutu program need to be list.
+In the example, neutu has been added to enviroment variable so only a "neutu" is enough.
+##### METRIC_CONFIG_PATH:
+Metric methods such as SSD requires configs in json format too. In most case default configs are enough.
+##### LOG_PATH
+The process of tracing in Neutu produce quite a lot of log data prevent us from getting the log about optimization. So we redirect these log to files in this path.
+#### 1.2 Input
+The input of contains three parts known as：
+##### ORIGIN_PATH：
+origin neuron image in TIFF format
+##### GOLD_PATH：
+gold standard reconstruction result in SWC format
+##### CONFIG_PATH：
+path of initial parameters of reconstruction
+
+You can create a folder named by FILE_ID in ($Pyneval)/data/optimization/ and name the ORIGIN tiff with FILE_ID_test.tif, name the GOLD swc with  FILE_ID_gold.swc,
+and leave initial parameters of reconstruction with default value. Of course you can ignore FILE_ID and change these PATH as you like. Only make sure you can understand the meaning of these path.
+
+#### 1.3 OUTPUT
+This script provides two output：
+##### optimal parameters
+the optimal parameters among all the iterations are save in the following path
+in ($PyNeval)/config/fake_reconstruction_configs/best_x_{FILE_ID}.json
+
+##### optimal reconstruction result
+The optimal reconstruction will be saved in:
+TEST_PATH/FILE_ID.swc
+
+### 2. run the script

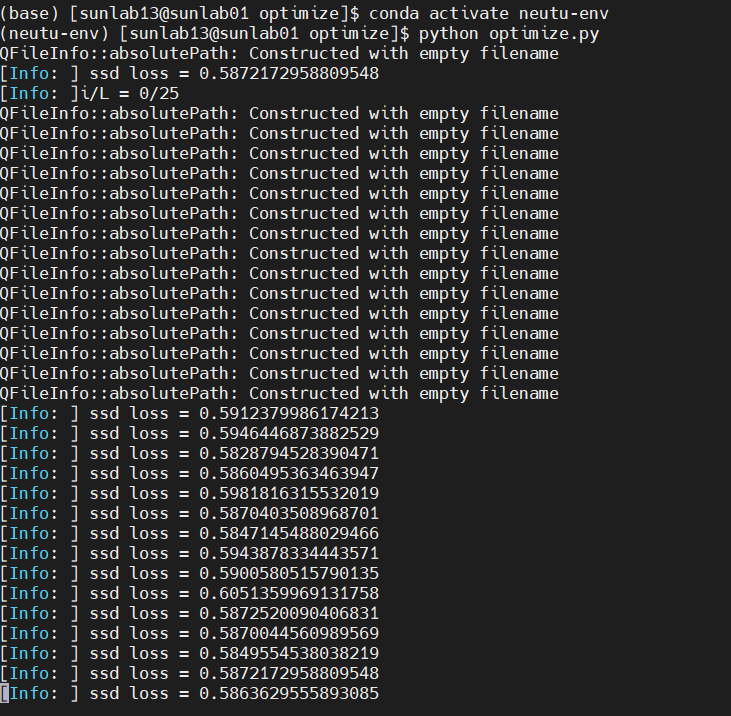

+Once you have confirmed all the path above, run:
+```python optimize.py```
+in ($Pyneval)/pyneval/tools/optimize/ and waiting for results
+![image](https://user-images.githubusercontent.com/32678771/119220480-5a65d180-bb1d-11eb-8b06-733146095c3e.png)
+

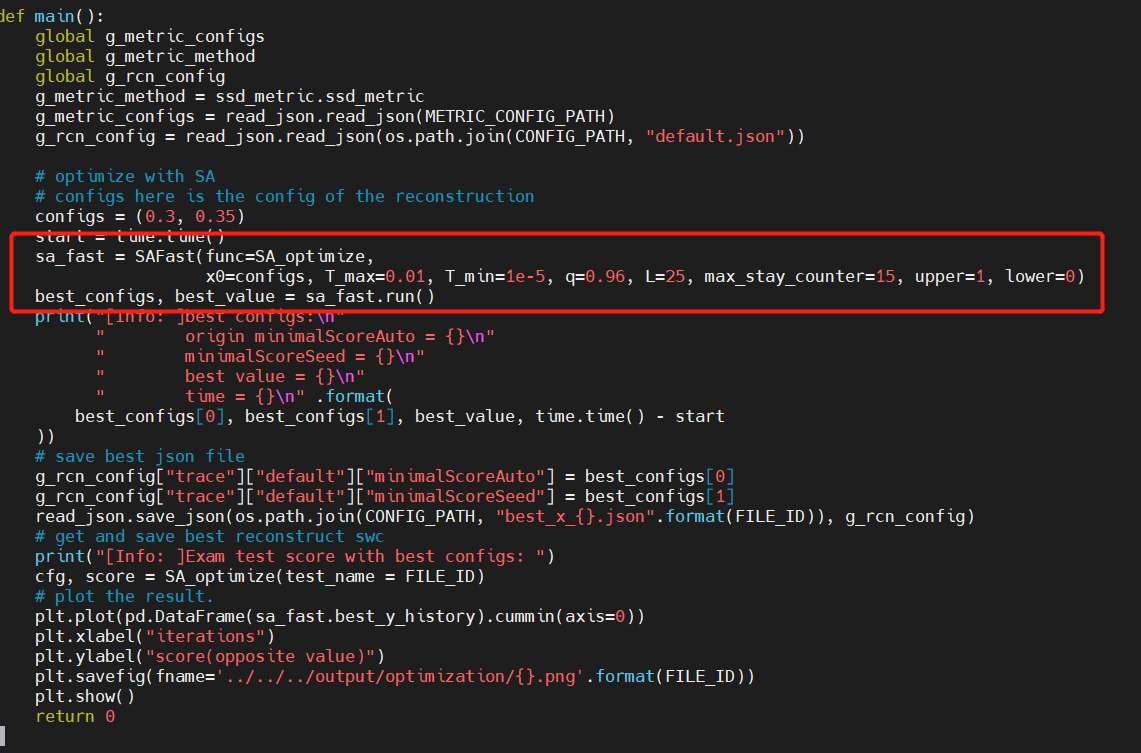

+### 3. Adjusting parameters of SA
+![image](https://user-images.githubusercontent.com/32678771/119220534-95680500-bb1d-11eb-9e82-7907e3f8291b.png)
+All the configs in SA can be adjust in the main function
+##### T_max: initial temperature
+##### T_min: minimum temperature, script stops if temperature is lower then T_min
+##### q:descending rate of T
+##### L: number of random loops under each iteration
+##### max_stay_counter: script stop if no new optimal value is found after max_stay_counter times of temperature descension.
+##### upper, lower: resize the step of random movement in each iteration
